Pipefitter Offset Calculator
Most offset calculators give you the travel and stop there. Travel runs centre to centre of two fittings, so you cannot cut it. This one subtracts the fitting take-offs and your weld gap, then gives you the length to mark on the pipe.
Free to use. A one-time $7.99 unlock opens the cut length. No subscription.
Most offset calculators give you the travel and stop there.
Travel runs centre to centre of two fittings, so you cannot cut it. This one subtracts the fitting take-offs and your weld gap, then gives you the length to mark on the pipe.

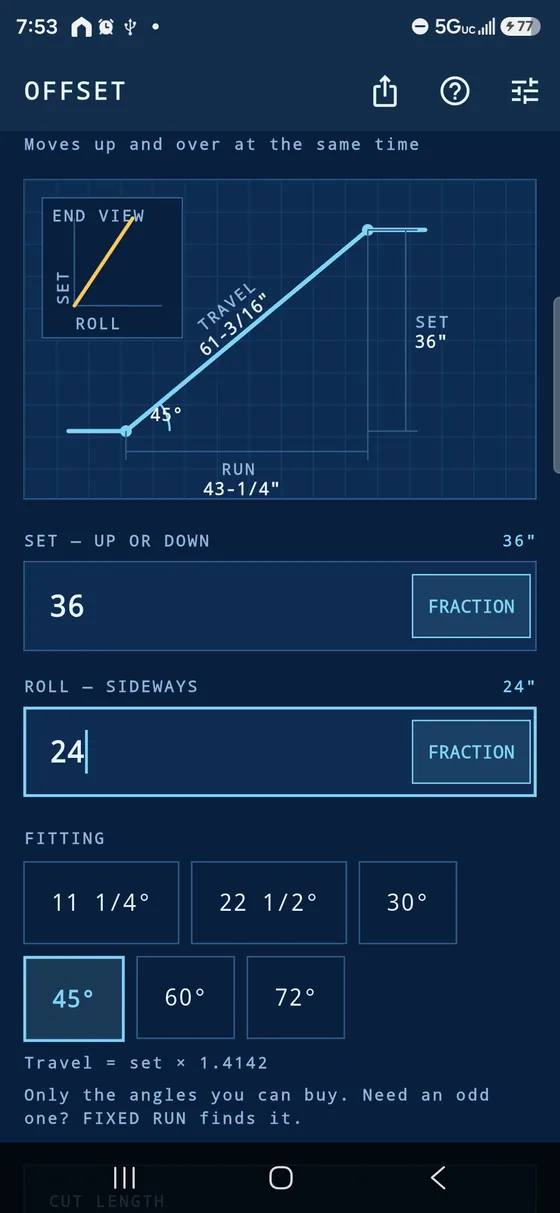

Type 151 5/16 the way you would write it on a scrap of cardboard.

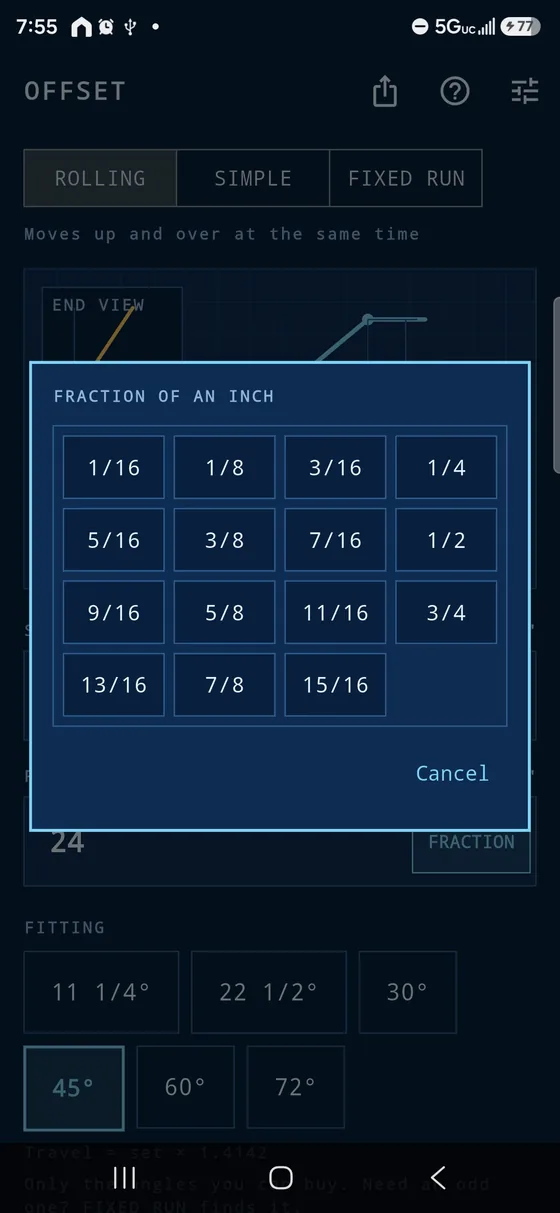

Tap a fraction rather than typing a denominator. Everything comes back in inches and sixteenths, or eighths, or thirty-seconds if that is how your shop marks. No decimals to convert in your head.
What it works out
- Rolling offsets
- With the roll angle, so you know how far to turn the fitting.
- Simple offsets
- In one plane.
- Fixed run
- For when the obstruction has already decided your run.
- Cut length
- With take-offs and weld gap taken off.
- Travel, run and true offset
- Alongside it, so you can check the work.
On the phone
Worth knowing
When the run is fixed
Sometimes you do not get to pick the fitting. Give it the run you actually have and it works out the angle that run needs, then names the nearest fitting you can buy and the run that one would take. It will not assume 45 and hand you a piece that does not fit.
The part you can check

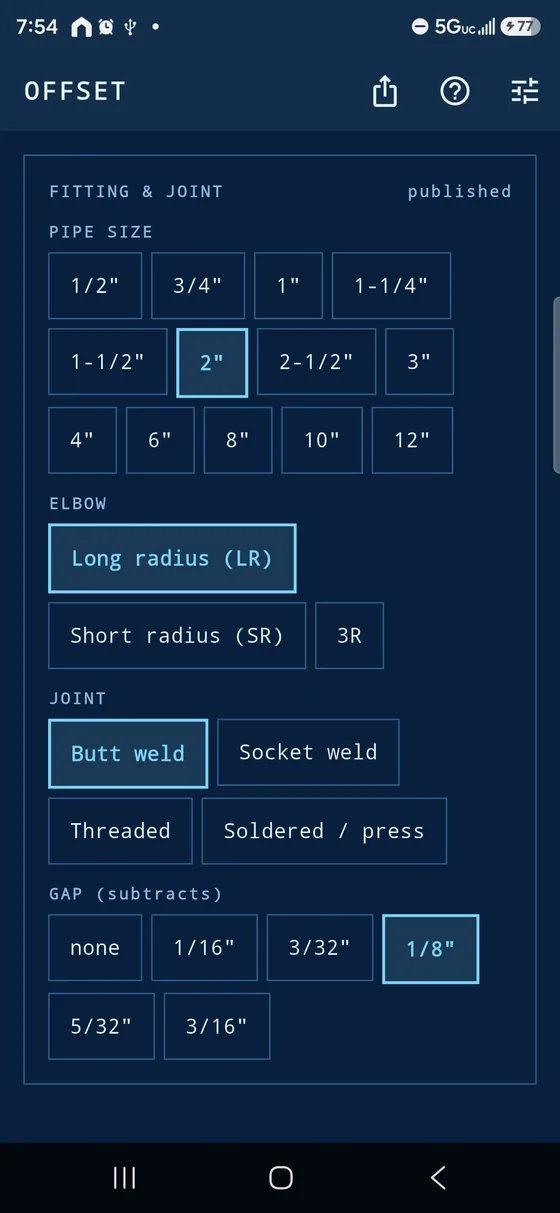

Every number comes from trigonometry you can do on paper. The 1.414 you already know for a 45 is 1 divided by sin 45, and that is how the app gets there too. Take-offs come off the fitting radius. Where a size breaks that rule, it uses the published dimension. You can edit any of it — if the fitting in your hand measures different, use yours.
The assumptions stay on screen

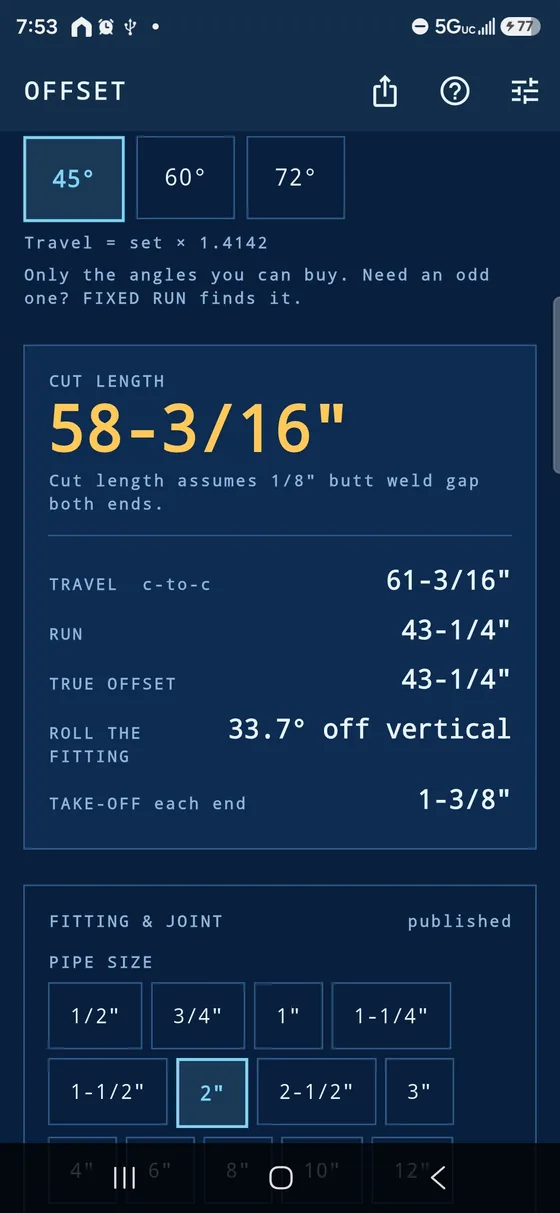

Every answer carries the gap it used, in plain words: cut length assumes 1/8" butt weld gap both ends. That line travels with the cut when you send it to a welder.
On a job site
It works with no signal at all. The buttons are sized for a gloved thumb, and the screen stays on while an answer is up.
Pipefitter Offset Calculator
Free to use. A one-time $7.99 unlock opens the cut length. No subscription.
